What is OSA ?

Obstructive Sleep Apnea is a potentially life threating disease in which patients stop breathing repeatedly during sleep due to airway collapse, leading to loss of oxygen and disruptive sleep pattern.

When healthy sleep is interrupted, the risk of developing cardiovascular disease and other serious health conditions occurs.

Continuous Positive Airway Pressure (CPAP) suitable for home and clinic, therapy of Obstructive Sleep Apnea (OSA).

Recently as per community study has done related to OSA, it is found that OSA afflicts more than 50 million adult's men and women in India.

Sleep apnoea can be of following types:

• Mild (5 to 15 breathing stoppages per hour)

•  Moderate (15 to 30 breathing stoppages per hour)

•  Severe (over 30 stoppages per hour)

SYMPTOMS :

•  Snoring

• Poor concentration

• High blood pressure

• Falling asleep during daytime

• Abnormal daytime sleepiness or tiredness

• Abnormal breathing while asleep noted by family

How is OSA diagnosed?

•  When you feel like this discuss sleep complaints and symptoms with your doctor. If a sleep disorder is suspected, your doctor will refer you for the sleep study for further evaluation.

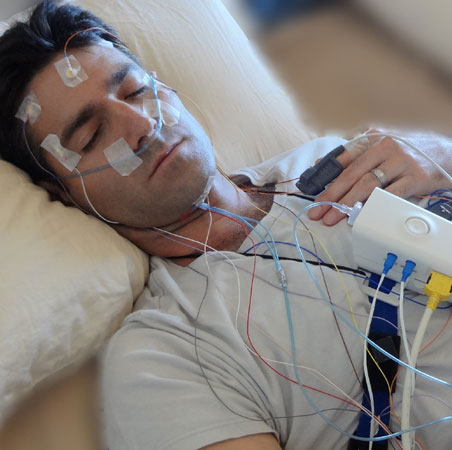

•  An overnight diagnostic sleep study knows as a Polysomnogram, or PSG is used to determine the type and severity of the sleep disorder, as well as appropriate treatment.

•  Arranging Home Sleep Study with a diagnostic report has never been easier.

• Medirent's provide home-based sleep study who can be advantageous to the homebound, elderly or those with chronic illness, who require specialized care such as a nurse or family member spending night, expensive transportation costs etc. it also beneficial for those with trouble arranging time out of their schedule to spend the night in – lab.

• Instead of travelling and spending a night in a hospital-based or sleep clinic environment, one of our Sleep Therapists can help you do a full diagnostic sleep study in the comfort, privacy, and convenience of your home.

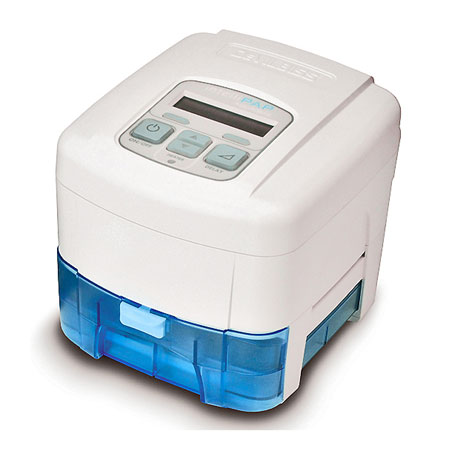

Once diagnosed with Obstructive Sleep Apnoea (OSA) the most common and widely accepted treatment is continuous Positive Airways Pressure (CPAP) therapy.

It provides a pressure of between 3cm H2O and 20cm H2O throughout the night, For those patients requiring humidification, each device can be fitted with a heated humidifier, a separate unit which clips easily to the underside of the device.

Cpap series multi voltage capability allows it to be used virtually anywhere in the world and it can also be operated from a 12V power source such as those found in a motor home.

Continuous Positive Airway Pressure (CPAP) suitable for home and clinic, therapy of Obstructive Sleep Apnea (OSA).

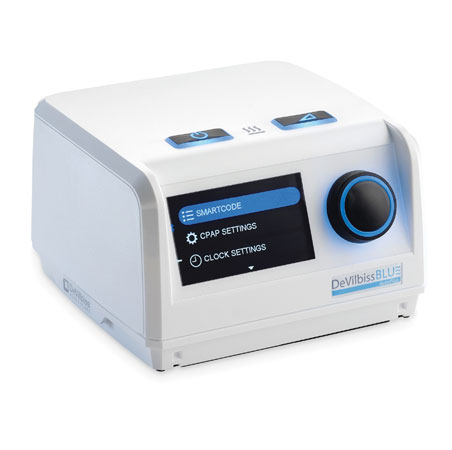

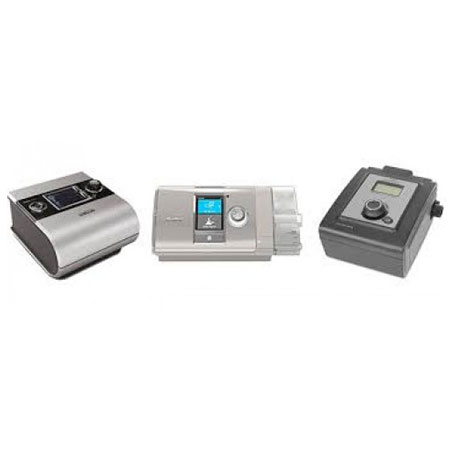

Types of CPAP Machines

1. CPAP (Fixed Pressure)

2. Semi Automatic CPAP MACHINE

3. Fully Automatic CPAP MACHINE

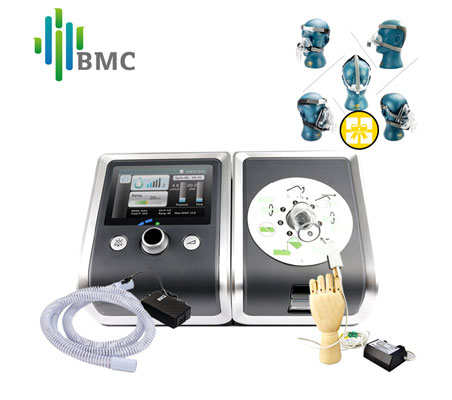

Detailed Description:

• Continuous Positive Airway Pressure (CPAP)

• Reliable stability

• Adopting the special designed air pump provides users Automatic Pressure 3-20 CMH2O.

• Ramp capabilities allow a 0-60 minutes time period with adjustable ramp starting pressure.

• Inspiration trigger for auto start-up

• Automatic stop after put off mask

• Alarm when accidental power-off

• In time alert function when mask and/or tubing off-line

• Automatic leakage and altitude compensation ensure the therapy accuracy anywhere.

•  365 Days Data Recording Facility.

Ergonomic design:

• Backlit LCD display for operation in dark

• Lighted user buttons with lockup capability

• Integrated designed InH2TM heated humidifier

• Smart Heater automatic restarts after short term break.

• Patented anti-counter current water tank

• DC 12V powered and infrared controlled humidifier make user safe and comfortable.

• Low noise device

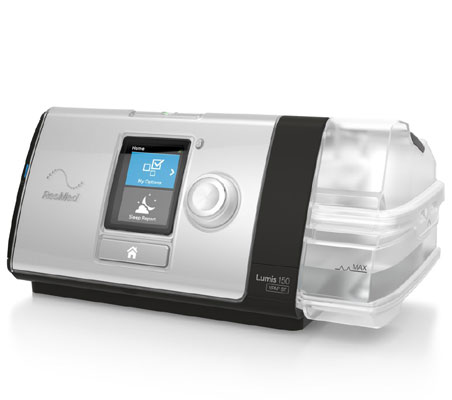

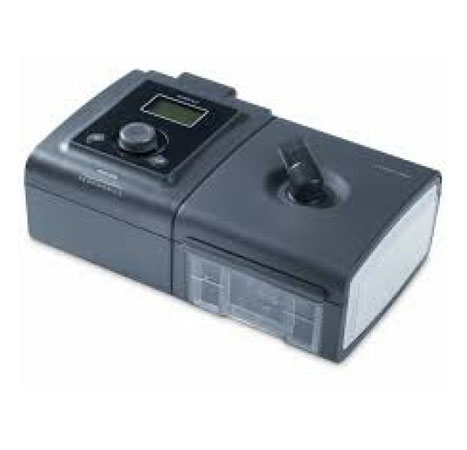

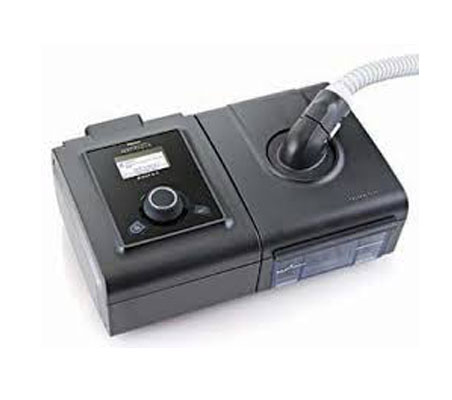

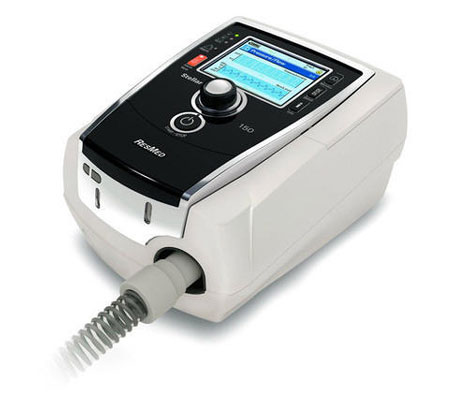

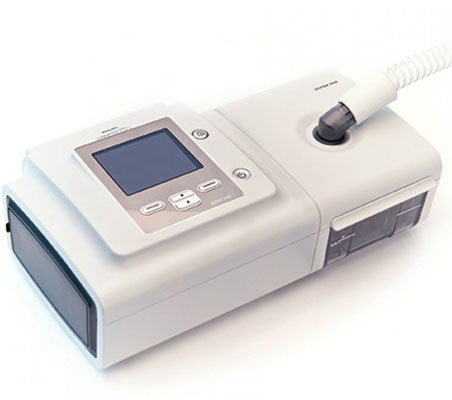

BIPAP Machine is a pressure support device ideal for patients weighing more than 13kg with respiratory insufficiency or obstructive sleep apnea, in the hospital or home.

Modes: CPAP and Spontaneous (S)

Platform features:

• Heated humidifier and Climate LineMAXtube, maintains ideal humidification according to real-time environment.

• Easy-Breathe motor offers the quietest therapy available.

• Easy-to-use controls and color LCD make menu navigation simple and intuitive.

• Slim Line and Climate Line tubes are exceptionally slim and lightweight, virtually eliminating tube drag.

• For a complete list of features, see specifications.

Treatment technologies (available in S mode):

• Vsync manages leak and maintains patient–device synchrony.

• TiControl manages leak by controlling the patient's inspiratory time limit according to disease state.

• Trigger and cycle sensitivities control the sensitivity with which the device detects the start of inspiration and expiration.

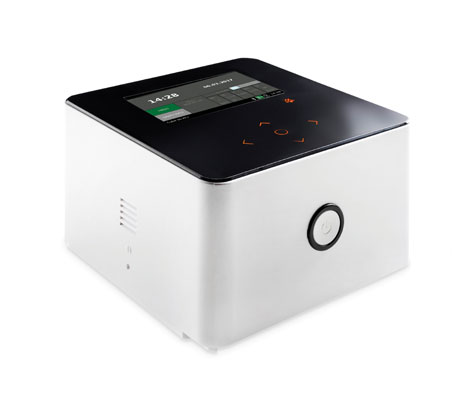

PRODUCT FEATURES

1. MODES OF VENTILATION

CPAP

SPONTANEOUS MODE

TIME MODE

ST MODE

3. Inbuilt SPO2 connecting and displaying Facility

4. Monitoring of SPO2, Tidal Volume, Leakage, I:E Ratio, Pressure, Resp. Rate on display

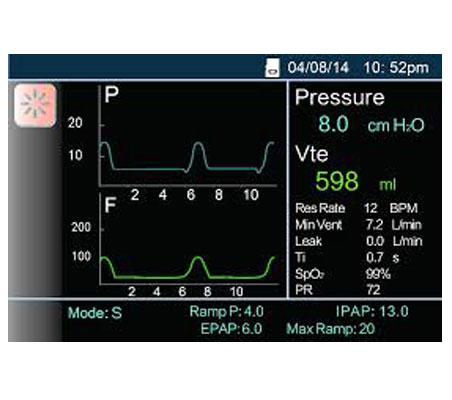

5. Graphics Display for Flow and Pressure

6. Alram Facility for Low and High Pressure, MV, Power Failure,Tidal Volume

7. IPAP PRESSURE RANGE 4-25 CMH20/hPa

8. EPAP PRESSURE RANGE 4-25 CM H2O/hPa

9. CPAP PRSSURE RANGE 4-20 CMH2O/hPa

10. Auto ON/OFF Facility

11. RESPIRATORY (FREQUENCY) BACK UP= 5 TO 45 BPM

12. Ramp- 5 to 45 minute

13. Ti Min., Ti Max, Rise Time Stting

14. HIGH TRIGGER SENSE for Insp. And Exp. with Several stages

15. 365 Days Data Storage FacilityHeated Humidifier with Temp. Control For Humidification

16. ELECTRICAL CONNECTIONS- AS PER INTERNATIONAL STANDARD

17. WEIGHT- LESS THAN 4 KG

18. CE/ISO/FDA Certified

PRODUCT FEATURES

1. MODES OF VENTILATION

CPAP

SPONTANEOUS MODE

SPONTANEOUS/TIME (ST) MODE

TIME MODE

ST with Assured Tidal Volume

2. Target Tidal Volume Range- 150 ml to 1500 ml

3. Inbuilt SPO2 connecting and displaying Facility

4. Monitoring of SPO2, Tidal Volume, Leakage, I:E Ratio, Pressure, Resp. Rate on display

5. Graphics Display for Flow and Pressure

6. Alram Facility for Low and High Pressure, MV, Power Failure,Tidal Volume

7. IPAP PRESSURE RANGE 4-30 CMH20/hPa

8. EPAP PRESSURE RANGE 4-25 CM H2O/hPa

9. CPAP PRSSURE RANGE 4-20 CMH2O/hPa

10. Auto ON/OFF Facility

11. RESPIRATORY (FREQUENCY) BACK UP= 5 TO 45 BPM

12. Ramp- 5 to 45 minute

13. Ti Min., Ti Max, Rise Time Stting

14. HIGH TRIGGER SENSE for Insp. And Exp. with Several stages

15. 365 Days Data Storage FacilityHeated Humidifier with Temp. Control For Humidification

16. ELECTRICAL CONNECTIONS- AS PER INTERNATIONAL STANDARD

17. WEIGHT- LESS THAN 4 KG

18. CE/ISO/FDA Certified

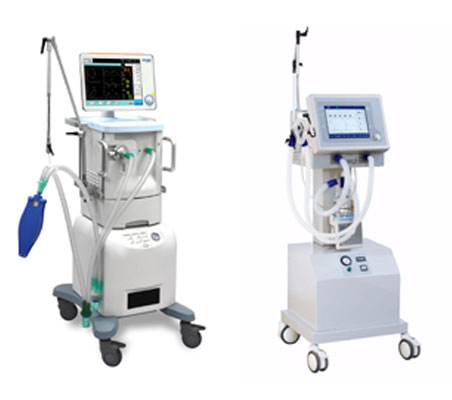

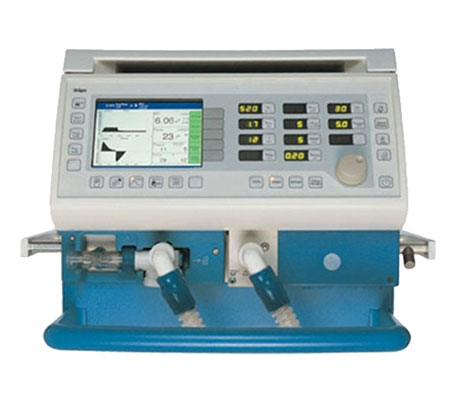

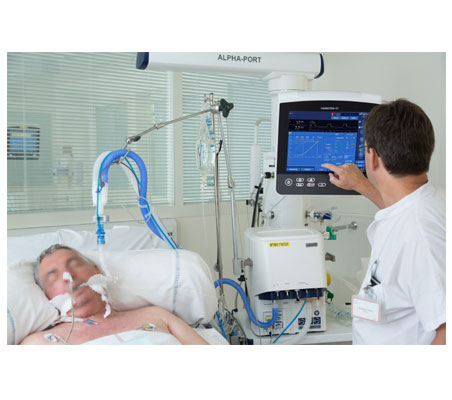

Specifications :

• Spontaneous breathing strategy. Spontaneous breathing reduces the risk of atelectasis and improves the ventilation/perfusion ratio by maintaining a higher functional residual capacity.

• The right mode for every patient. The wide range of patients covered also reduces the amount of staff training required and ensures a greater flexibility in the use of resources.

• Two-in-one ventilation. Mask ventilation can assist the weaning process by reducing the reintubation rate or even preventing intubation in the first place.

• Everything in view. The high-resolution full-color screen displays comprehensive information on a patient's status, always showing two ventilation curves and six monitored values, and the screen configuration can be customized to show the most important values for a particular ICU.

• One knob, simplified settings. The rotary knob plays a key role. The active setting parameters are visible at a glance and changes can be made by the well-established "select-adjustconfirm" principle.

• Ventilation at a glance. The principle of only showing the necessary parameters reduces the complexity of everyday monitoring.

• Simpler and speedier standard procedures. Contains numerous functions to speed up and simplify routine procedures. Start-up settings can be configured to specific ICU practices.

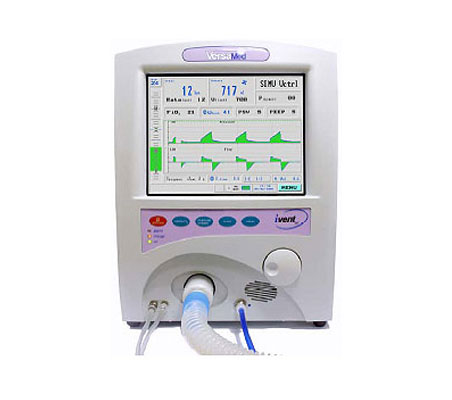

Ventilation Settings :

•  Ventilation mode: IPPV, IPPVAssist (CMV, CMVAssist) SIMV, SIMVASB (SIMV, SIMV/Psupp) MMV, MMVASB (MMV, MMV/Psupp) BIPAP1), BIPAP1)ASB, BIPAP1)Assist (PCV+, PCV+/Psupp, PCV+Assist) CPAP, CPAPASB (CPAP, CPAP/Psupp) APRV (optional) ILV (optional)

•  Enhancements: AutoFlow™ – Automatic adaptation of inspiratory flow in volume controlled modes ATC™ – Automatic Tube Compensation (optional) IV - Mask Ventilation (optional)

• Ventilation frequency (f): 0 to 100 /min, 0 to150 /min (Neonatal)

• Inspiration time (Tinsp): 0.1 to 10 s

• Tidal volume (VT) (BTPS): 0.1 to 2.0 L (Adult) 0.02 to 0.3 L (Pediatric) 0.003 to 0.1 L (Neonatal)

• Inspiratory flow: 6 to 120 L/min (Adult) 6 to 30 L/min (Pediatric and Neonatal)

• Inspiratory pressure: 0 to 80 mbar (cmH2O) PEEP / intermittent PEEP: 0 to 35 mbar (cmH2O)

• Pressureassist (PASB) (Psupp): 0 to 80 mbar (cmH2O)

• Rise time for inspiratory pressure: 0 to 2 s

• O2 concentration: 21 to 100 Vol.%

• Multi-sense Trigger Criteria: Internal automatic pressure trigger, Flow, Volume (Flow adjustable 0.3 to 15 L/min)
